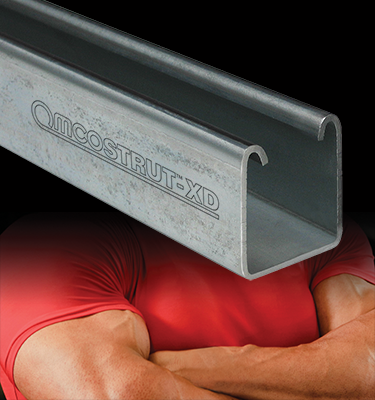

14 Gauge OmcoSTRUT™-XD High Strength Channel
OmcoSTRUT™-XD 14 gauge strut provides an outstanding opportunity to save cost on structural channel. Compared to standard strength 12 gauge strut, high strength OmcoSTRUT-XD can reduce about 12% or more* of material cost while providing a stronger strut.
*Actual savings is dependent on freight and other variables.
Ask for a proposal, you may have a welcome surprise.
Standard 12 Gauge Strut |
14 Gauge Omco STRUT-XD |
Omco Advantage | |
---|---|---|---|
Strut Channel Size |
1-5/8″ x 1-5/8″ |
1-5/8″ x 1-5/8″ |
Same |
Material Gauge |
12 |
14 |
Thinner |
Weight per Foot (lbs.) |
1.900 |
1.372 |
27% Lighter |
Beam Span |
48″ |
48″ |
Same |
Uniform Load Rating (lbs.) |
851 |
863 |
Slightly Higher |
Product Dimensions – 14 Gauge Strut
Product Number | Width | Length | Height | Plain | PreGalv | Green | Stainless |
---|---|---|---|---|---|---|---|
XD14 | 1-5/8″ | 120″/240″ | 13/16″ | ✔ | ✔ | ✔ | ✔ |
XD24 | 1-5/8″ | 120″/240″ | 1″ | ✔ | ✔ | ✔ | ✔ |
XD44 | 1-5/8″ | 120″/240″ | 1-5/8″ | ✔ | ✔ | ✔ | ✔ |
Material Specifications
Material | Steel Specifications |
---|---|
Pre-Galvanized (PG) | 50,000 psi min yield G90 |
Plain (PL) | 50,000 psi min yield |
Green Powder Coat (GR) | 50,000 psi min yield |
Stainless Steel (SS4, SS6) | 304 0r 316 Stainless |
Hole Configurations
Product Number | Dimensions |
---|---|
Round Holes (RH) | 9/16″ Holes on 1-7/8″ ctrs |
Half-Slot (HS) | 9/16″ x 1-1/8″ Slots on 2″ ctrs |
Full Slot (FS) | 7/16″ x 3″ Slots on 4″ ctrs |
Custom Strut Orders
Available Services* |
---|
✔ Cut-to-Length |
✔ Custom Hole / Slot Patterns |
✔ Special Material Specifications |
✔ Custom Packaging |
✔ Custom Punch Design |
✔ Fastener Insertion |
✔ Special Color / Finish Spec. |
✔ Sub-Assembly Services |
*Setup charges, tooling costs and minimum
order quantities may apply.
Part Number Methodology
Product Number | Holes | Length | Finish | Complete Part Number |
---|---|---|---|---|
Strut Profile: 1-5/8″ x 1-5/8″ 14 ga | Half Slot | 120 inches | Pre-Gal | XD44HS-120PG |
XD44 | HS | 120 | PG |
